First Air Compressors

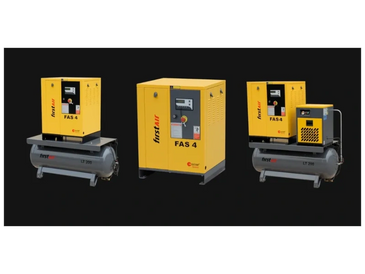

FAS 4

FAS 4

FAS 4

Air discharge (max.): 0.52 m3/min
High efficient rotary screw compressor
Air cooled
Maintenance friendly design
V-belt drive
Operating pressure 8 to 10 bar(g)
Flowrate 0,47 m3/min - 0,52 m3/min
Motor nominal power 4 kW
With Driving motors classified in IE3 energy efficiency class, Protection Level IP 55, Insulation Class Type F
Also available with

Air discharge (max.): 0.52 m3/min
High efficient rotary screw compressor
Air cooled
Maintenance friendly design
V-belt drive
Operating pressure 8 to 10 bar(g)
Flowrate 0,47 m3/min - 0,52 m3/min
Motor nominal power 4 kW
With Driving motors classified in IE3 energy efficiency class, Protection Level IP 55, Insulation Class Type F
Also available with 200 liter air receiver (FAS 4-R) and 200 liter air receiver + Dryer (FAS 4-AT)
Dimensions (LxWxH): 660mm x 600mm x 890 mm
Weight: 230 kg

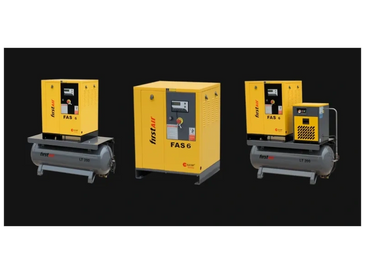

FAS 6

FAS 4

FAS 4

Air discharge (max.): 0.76 m3/min
High efficient rotary screw compressor
Air cooled
Maintenance friendly design
V-belt drive
Operating pressure 8 to 10 bar(g)
Flowrate 0,70 m3/min - 0,76 m3/min
Motor nominal power 5,5 kW
With Driving motors classified in IE3 energy efficiency class, Protection Level IP 55, Insulation Class Type F
Also available w

Air discharge (max.): 0.76 m3/min
High efficient rotary screw compressor
Air cooled
Maintenance friendly design
V-belt drive
Operating pressure 8 to 10 bar(g)
Flowrate 0,70 m3/min - 0,76 m3/min
Motor nominal power 5,5 kW
With Driving motors classified in IE3 energy efficiency class, Protection Level IP 55, Insulation Class Type F
Also available with 200 liter air receiver (FAS 6-R) and 200 liter air receiver + Dryer (FAS 6-AT)
Dimensions (LxWxH): 660mm x 600mm x 890 mm
Weight: 240 kg

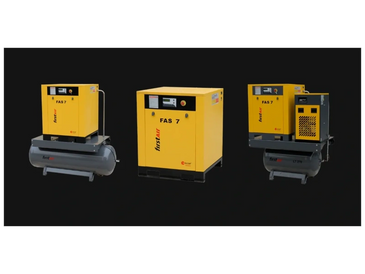

FAS 7

FAS 4

FAS 11

Air discharge (max.): 1.15 m3/min
High efficient rotary screw compressor
Air cooled
Maintenance friendly design
V-belt drive
Operating pressure 8 to 10 bar(g)
Flowrate 1,05 m3/min – 1,15 m3/min
Motor nominal power 7,5 kW
With Driving motors classified in IE3 energy efficiency class, Protection Level IP 55, Insulation Class Type F
Also available wi

Air discharge (max.): 1.15 m3/min
High efficient rotary screw compressor
Air cooled
Maintenance friendly design
V-belt drive
Operating pressure 8 to 10 bar(g)
Flowrate 1,05 m3/min – 1,15 m3/min
Motor nominal power 7,5 kW
With Driving motors classified in IE3 energy efficiency class, Protection Level IP 55, Insulation Class Type F
Also available with 270 liter air receiver (FAS 7-R) and 200 liter air receiver + Dryer (FAS 7-AT)
Dimensions (LxWxH): 800mm x 800mm x 995 mm
Weight: 280 kg

FAS 11

FAS 11

FAS 11

Air discharge (max.): 1.74 m3/min
High efficient rotary screw compressor
Air cooled
Maintenance friendly design
V-belt drive
Operating pressure 8 to 10 bar(g)
Flowrate 1,52 m3/min – 1,74 m3/min
Motor nominal power 11 kW
With Driving motors classified in IE3 energy efficiency class, Protection Level IP 55, Insulation Class Type F
Also available wit

Air discharge (max.): 1.74 m3/min
High efficient rotary screw compressor
Air cooled
Maintenance friendly design
V-belt drive
Operating pressure 8 to 10 bar(g)
Flowrate 1,52 m3/min – 1,74 m3/min
Motor nominal power 11 kW
With Driving motors classified in IE3 energy efficiency class, Protection Level IP 55, Insulation Class Type F
Also available with 270 liter air receiver (FAS11-R) and 200 liter air receiver + Dryer (FAS 11-AT)
Dimensions (LxWxH): 880mm x 830mm x 1075 mm
Weight: 300 kg

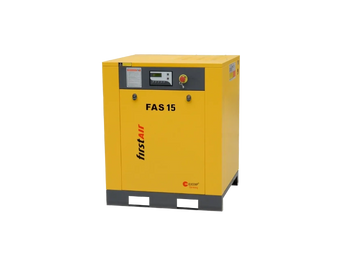

FAS15

FAS 11

FAS15

Air discharge (max.): 2.11 m3/min
High efficient rotary screw compressor
Air cooled
Maintenance friendly design
V-belt drive
Operating pressure 8 to 10 bar(g)
Flowrate 1,98 m3/min – 2,11 m3/min
Motor nominal power15 kW
With Driving motors classified in IE3 energy efficiency class, Protection Level IP 55, Insulation Class Type F
Also available with

Air discharge (max.): 2.11 m3/min
High efficient rotary screw compressor
Air cooled
Maintenance friendly design
V-belt drive
Operating pressure 8 to 10 bar(g)
Flowrate 1,98 m3/min – 2,11 m3/min
Motor nominal power15 kW
With Driving motors classified in IE3 energy efficiency class, Protection Level IP 55, Insulation Class Type F
Also available with 270 liter air receiver (FAS 15-R) and 200 liter air receiver + Dryer (FAS 15-AT)
Dimensions (LxWxH): 880mm x 830mm x 1075 mm
Weight: 400 kg

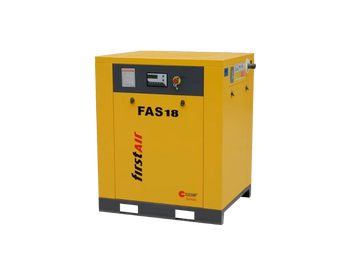

FAS18

FAS 11

FAS15

Air discharge (max.): 2.98 m3/min
High efficient rotary screw compressor
Air cooled
Maintenance friendly design
V-belt drive
Operating pressure 8 to 10 bar(g)
Flowrate 2,67 m3/min – 2,98 m3/min
Motor nominal power 18,5 kW
With Driving motors classified in IE3 energy efficiency class, Protection Level IP 55, Insulation Class Type F
Dimensions (LxWxH): 1050mm x 880mm x 1260 mm
Weight: 500 kg

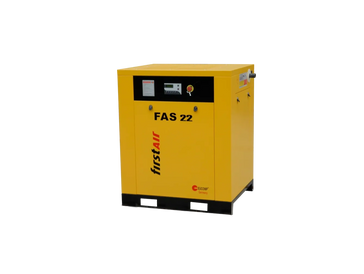

FAS22

FAS22

FAS22

Air discharge (max.): 3.62 m3/min
High efficient rotary screw compressor
Air cooled
Maintenance friendly design
V-belt drive
Operating pressure 8 to 10 bar(g)
Flowrate 3,25 m3/min – 3,62 m3/min
Motor nominal power 22 kW
With Driving motors classified in IE3 energy efficiency class, Protection Level IP 55, Insulation Class Type F
Dimensions (LxWxH): 1050mm x 880mm x 1260 mm
Weight: 570 kg

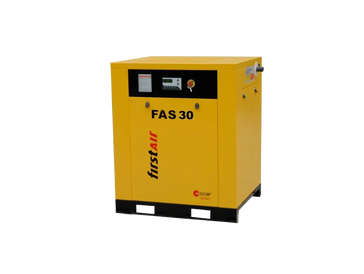

FAS30

FAS22

FAS22

Air discharge (max.): 5.20 m3/min

High efficient rotary screw compressor
Air cooled
Maintenance friendly design
V-belt drive
Operating pressure 8 to 10 bar(g)
Flowrate 4,57 m3/min – 5,20 m3/min
Motor nominal power 30 kW
With Driving motors classified in IE3 energy efficiency class, Protection Level IP 55, Insulation Class Type F
Dimensions (LxWxH): 1000mm x 1250mm x 1310 mm
Weight: 850 kg

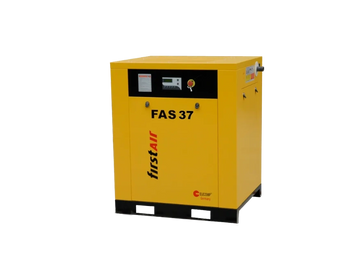

FAS37

FAS22

FAS37

Air discharge (max.): 5.94 m3/min
High efficient rotary screw compressor
Air cooled
Maintenance friendly design
V-belt drive
Operating pressure 8 to 10 bar(g)
Flowrate 4,57 m3/min – 5,20 m3/min
Motor nominal power 30 kW
With Driving motors classified in IE3 energy efficiency class, Protection Level IP 55, Insulation Class Type F
Dimensions (LxWxH): 1000mm x 1250mm x 1310 mm
Weight: 850 kg
